FEATURES

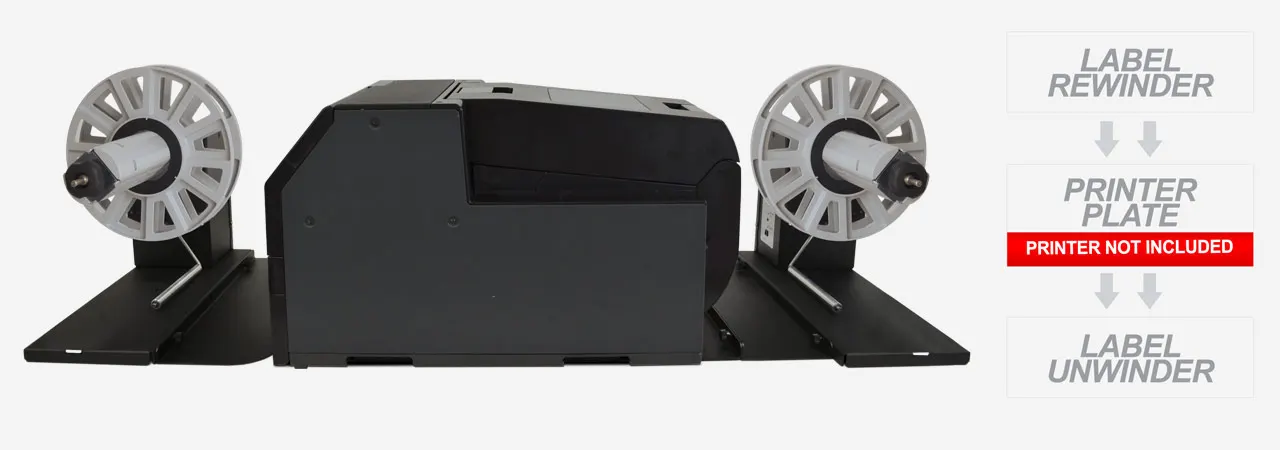

The unwinder and rewinder specifically designed for Epson C6000A color label printer can handle rolls up to 127mm (5") media wide and having an outside diameter up to 250mm (10"). Both Unwinder and Rewinder are equipped with a fixed 3" core holder.

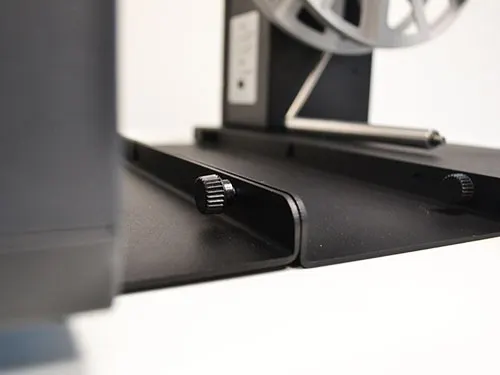

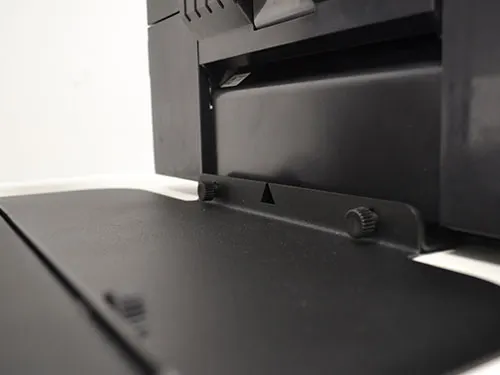

The printer will be locked over the printer plate.
This way the correct unwinding / rewinding operations are guaranteed and units are safely aligned with the printer.

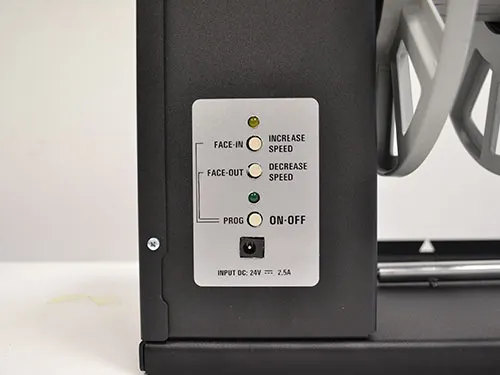

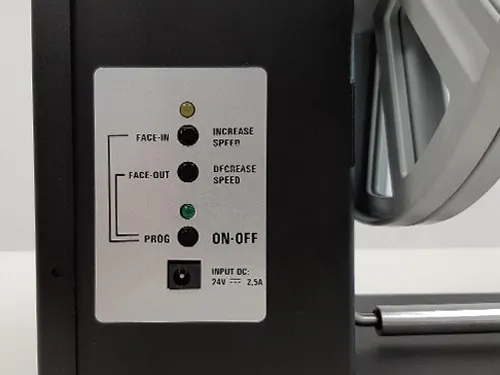

An external power supply 100/240VAC - 2.5A at 24V allows an electronic circuit to provide, through the tension arm, the automatic adjustment of the rotation direction and speed.





Brochure | User Manual |

M O D E L S
UW6000A RW6000A
label unwinder EPSON C6000A label rewinder EPSON C6000A

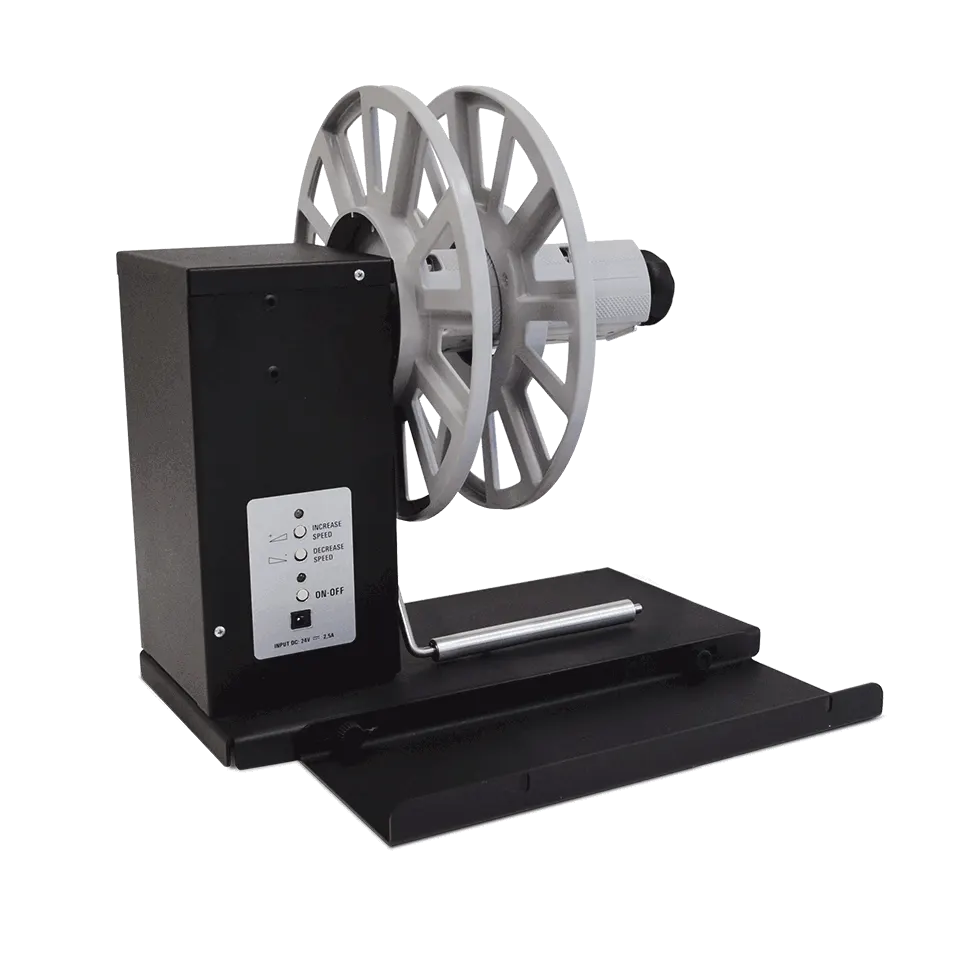

Label unwinder
Roll diameter up to 250mm (10")
Media width up to 127mm (5")
3" fixed core holder

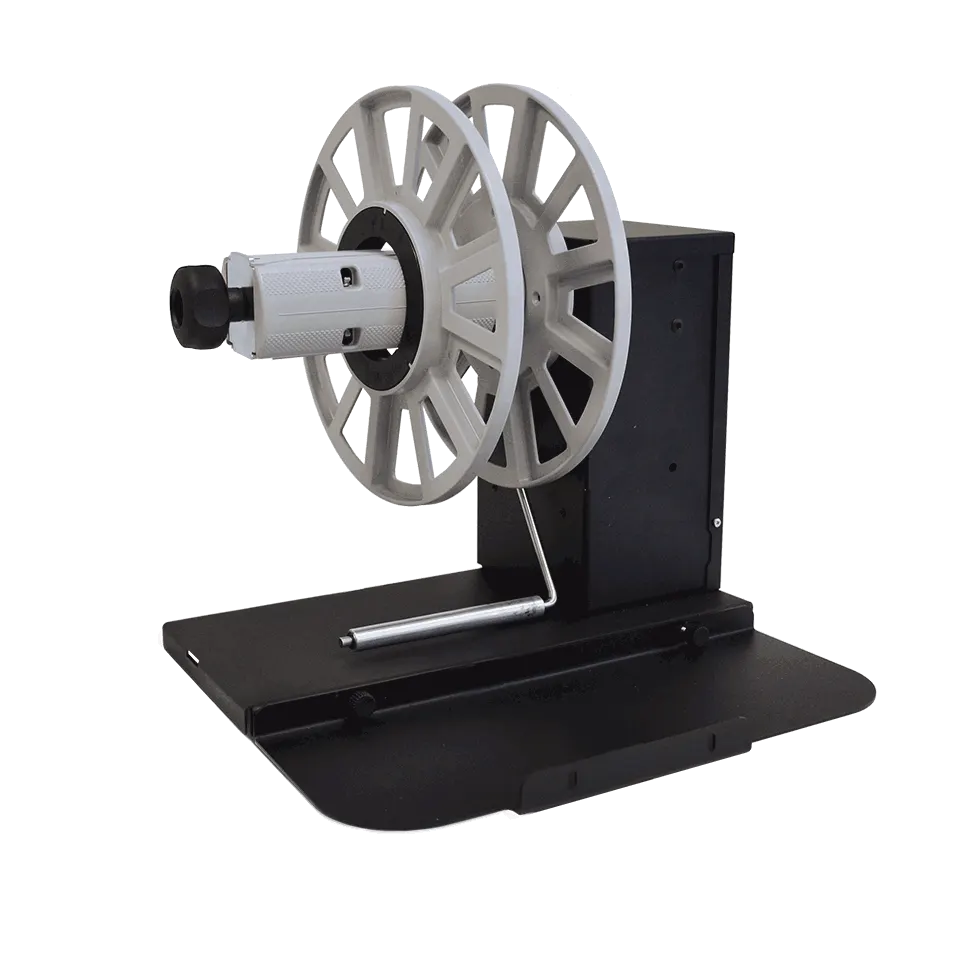

Label rewinder
Roll diameter up to 250mm (10")
Media width up to 127mm (5")
3" fixed core holder

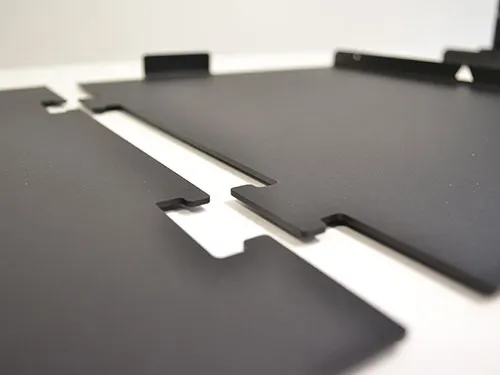

P R I N T E R - P L A T E

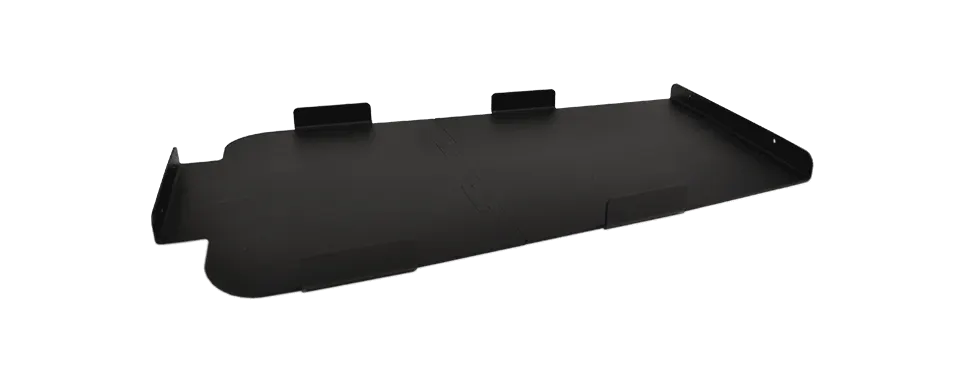

JPL-6000A
Epson C6000A printer plate
Printer plate UW&RW for EPSON C6000A


SIZE
MODELS LENGTH WIDTH HEIGHT
UW6000A 29cm (11.41") 35cm (13.78") 36cm (14.17")
RW6000A 32cm (12.60") 35cm (13.78") 36cm (14.17")
JPL-6000A 58cm (19.93") 27cm (10.62") /

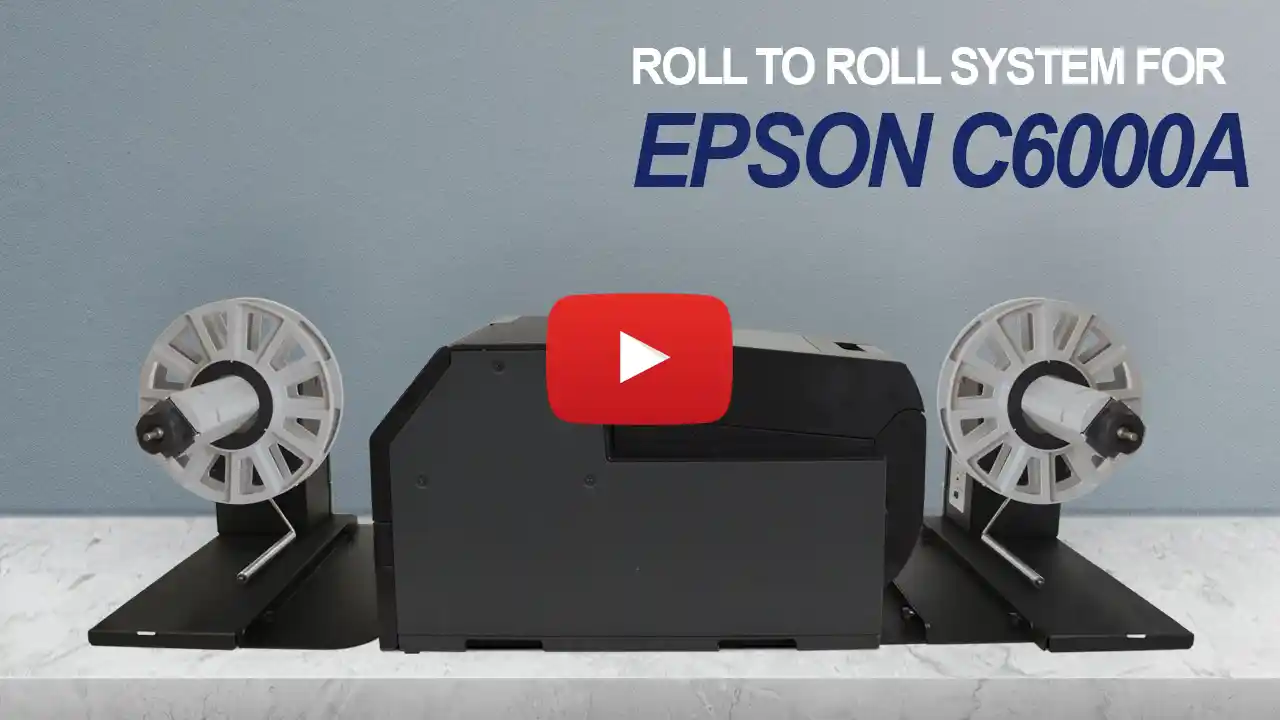

VIDEO
