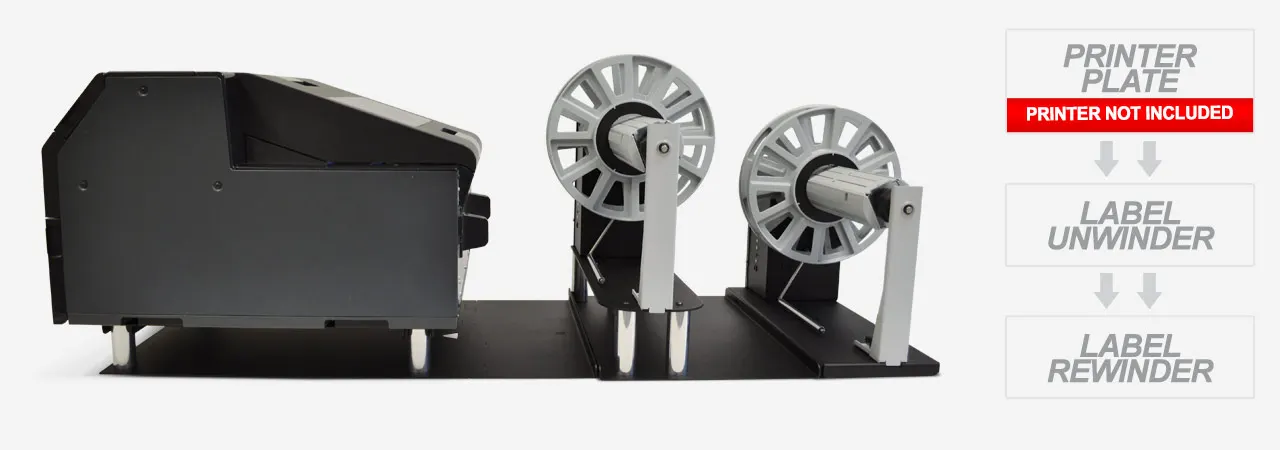

Roll to Roll System for Epson C6500P printer

label unwinder/rewinder for Epson C6500P printers

FEATURES


The unwinder and rewinder specifically designed for Epson C6500P color label printer can handle rolls up to 220mm (8.66") media wide and having an outside diameter up to 250mm (10"). Both Unwinder and Rewinder are equipped with a fixed 3” core holder.

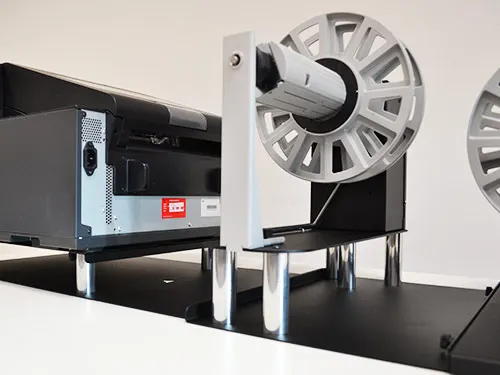

The printer will be locked over the printer plate.
This way the correct unwinding / rewinding operations are guaranteed and units are safely aligned with the printer.

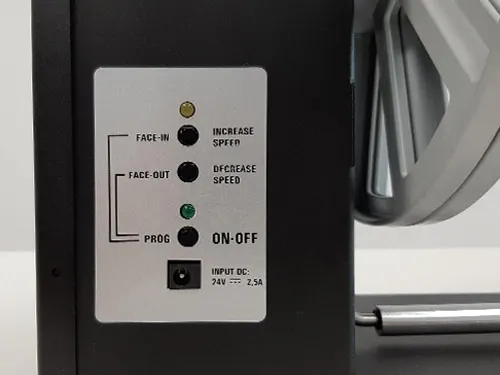

An external power supply 100/240VAC - 2.5A Direct current at 24V allows an electronic circuit to provide, through the tension arm, the automatic adjustment of the rotation direction and speed.





Brochure | User Manual |

M O D E L S
UW6500P RW6500P
label unwinder EPSON C6500P label rewinder EPSON C6500P

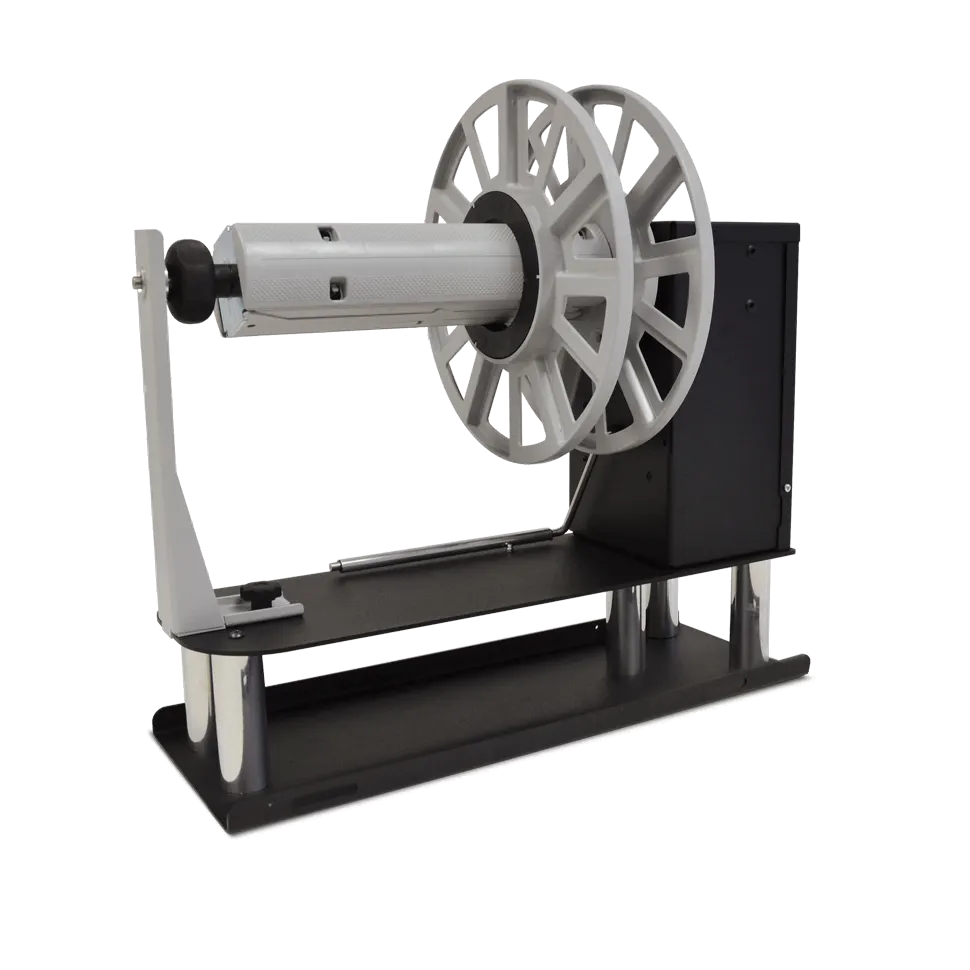

Label unwinder
Roll diameter up to 250mm (10")
Media width up to 220mm (8.66")

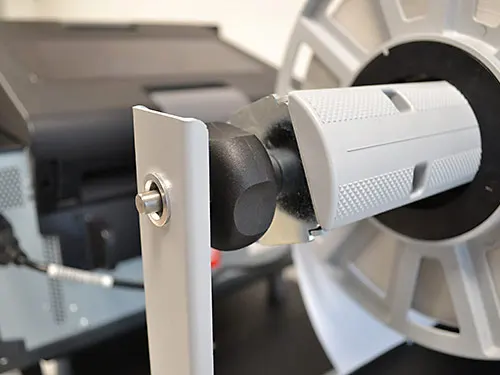

3" fixed core holder

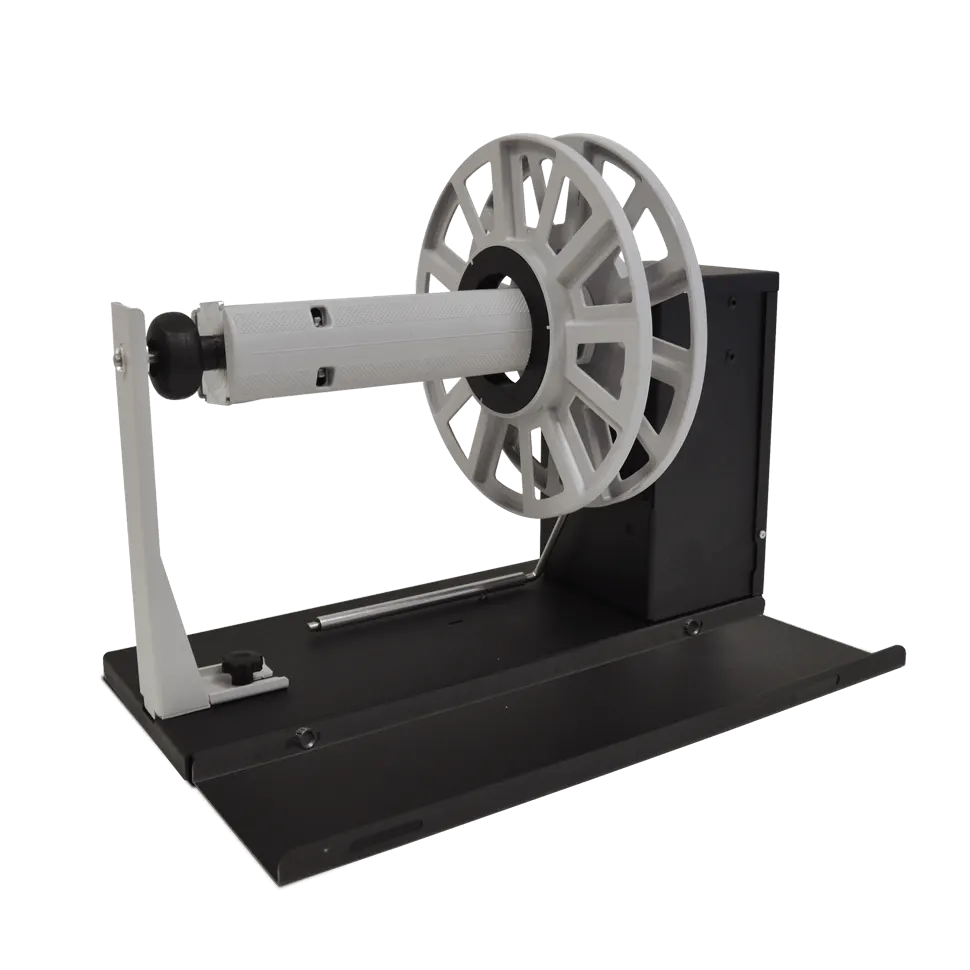

Label rewinder
Roll diameter up to 250mm (10")
Media width up to 220mm (8.66")
3" fixed core holder

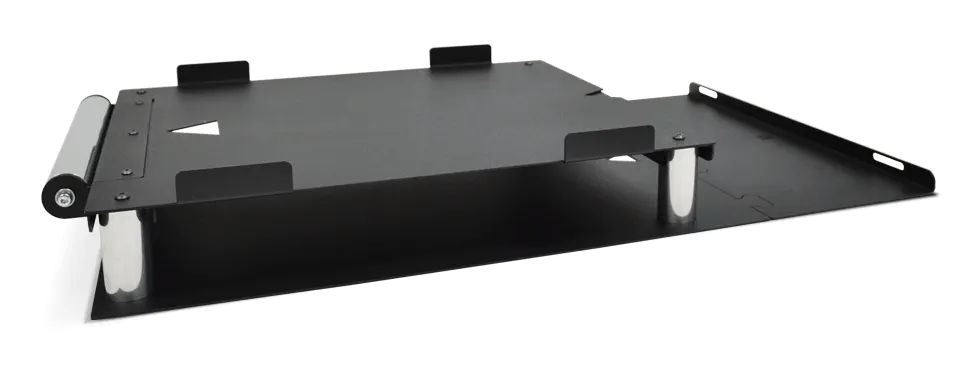

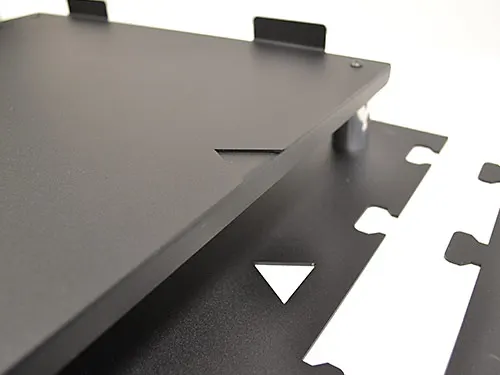

P R I N T E R - P L A T E
JPL-6500P
Epson C6500P printer plate
Printer plate UW&RW for EPSON C6500P


SIZE
MODELS LENGTH WIDTH HEIGHT
UW6500P 23cm (9.05") 45cm (17.71") 41cm (16.14")
RW6500P 35cm (13.77") 45cm (17.71") 41cm (16.14")
JPL-6500P 66cm (25.98") 37cm (14.56") 9cm (3.54")

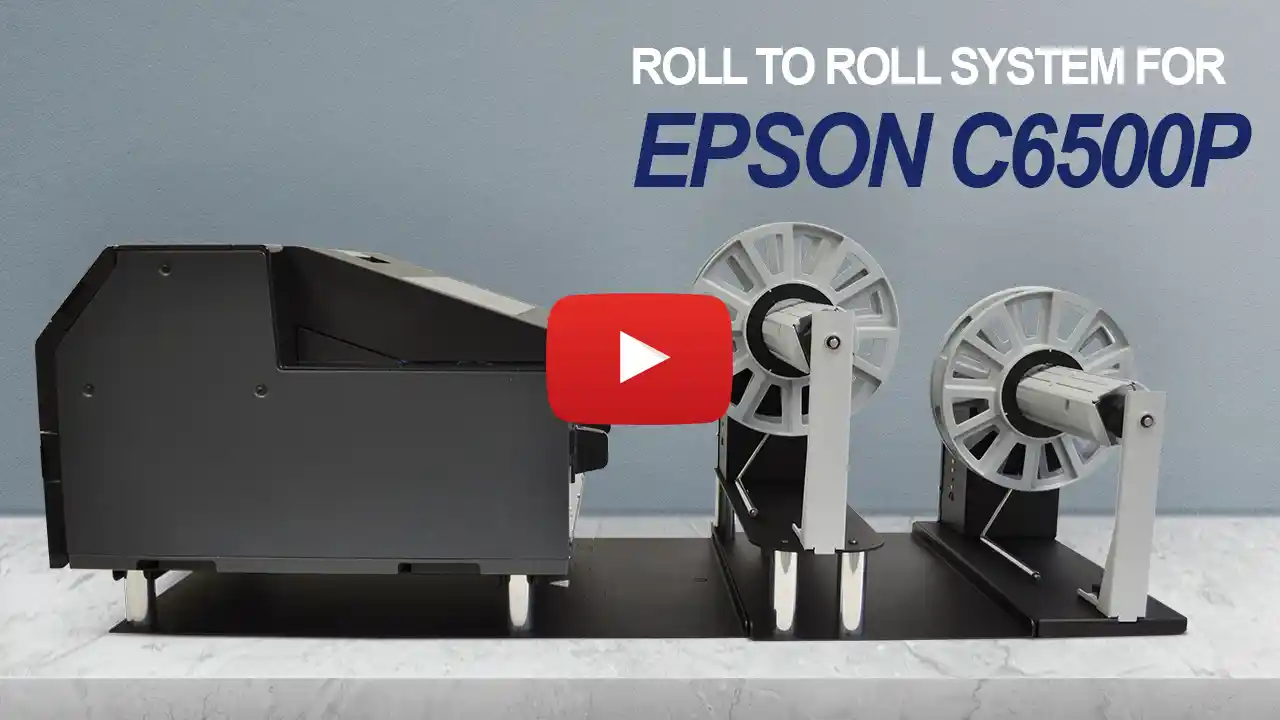

VIDEO




GALLERY

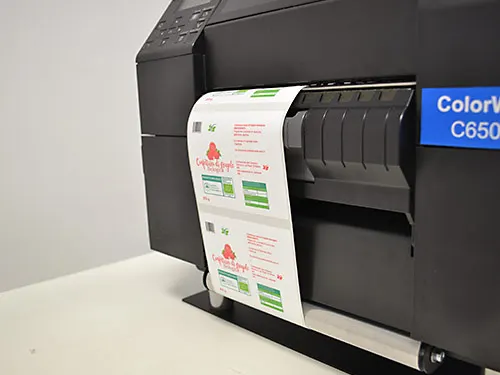

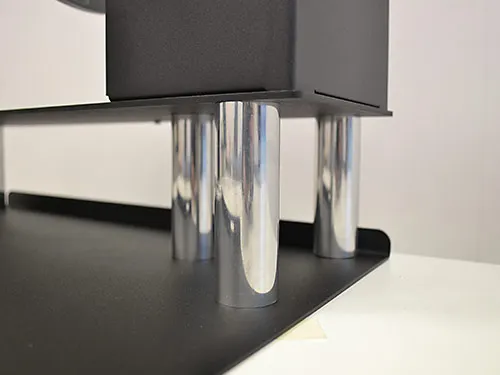

  • label rewinder and unwinder for epson c6500p printer detail
  • label rewinder and unwinder for epson c6500p printer detail
  • label rewinder and unwinder for epson c6500p printer detail
  • label rewinder and unwinder for epson c6500p printer detail
  • label rewinder and unwinder for epson c6500p printer detail
  • label rewinder and unwinder for epson c6500p printer detail
