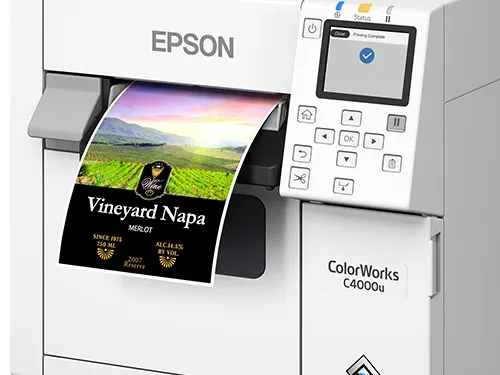

Roll to Roll System for Epson C4000 printer

label unwinder/rewinder for Epson C4000 printers

FEATURES


The unwinder and rewinder for Epson C4000 printers are used to manage rolls of media up to 127mm (5") having an outside diameter up to 250mm (10"). The users can select among the adjustable core holder 40mm - 118mm (1.57" - 4.64") and the 76mm (3") fixed.

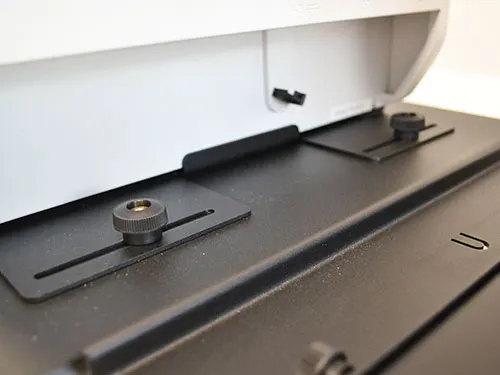

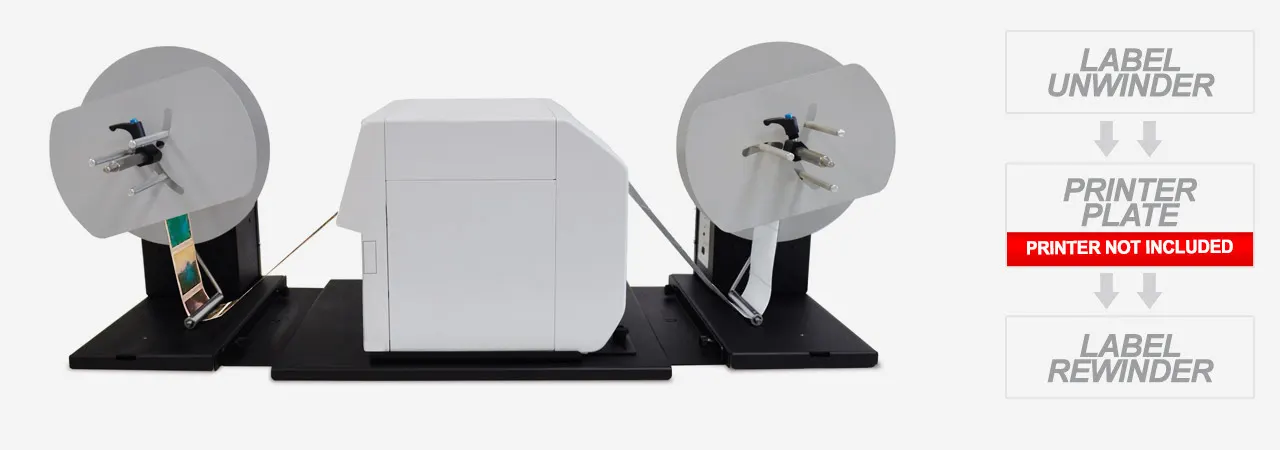

To guarantee an aligned media path in the system, it is available the junction plate to connect the rewinder and unwinder together. It offers also a customized sliding support where lean and fix the Epson printer.

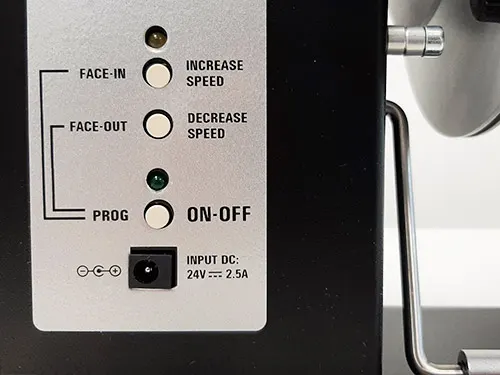

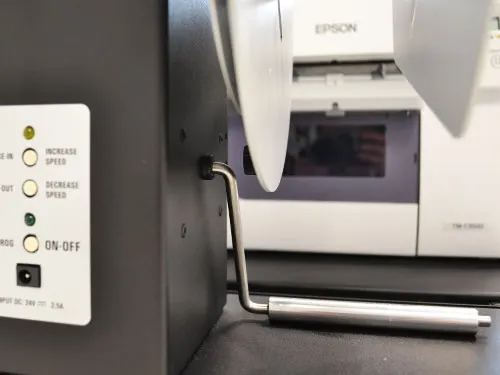

An external power supply 100/240VAC - 2.5A at 24V Direct current allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction. A 2A fuse is used as protection.

Official EPSON article.


Brochure | User Manual |

M O D E L S
ASS1111-S0 ASD1111-S0 ASS1114-S0 ASD1114-S0
ASS1111-S0 label unwinder epson C4000 ASD1111-S0 label rewinder epson C4000 ASS1114-S0 label unwinder epson C4000 ASD1114-S0 label rewinder epson C4000

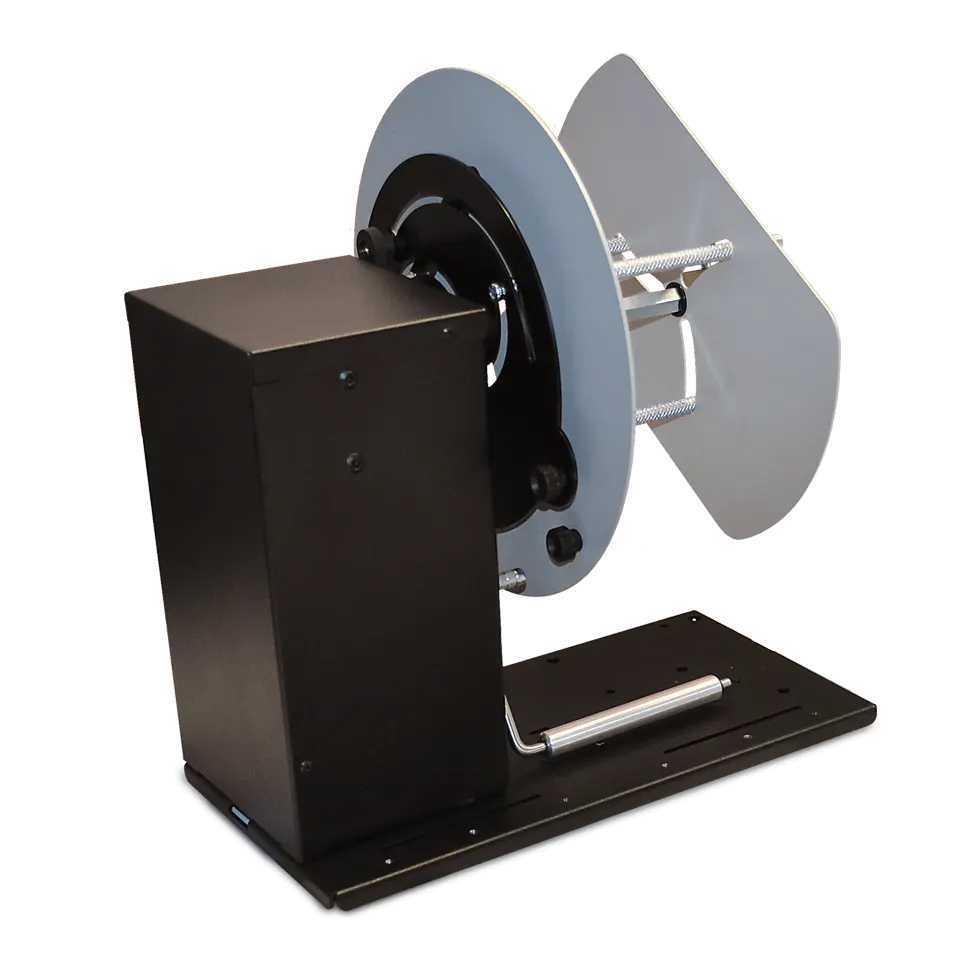

Label unwinder with

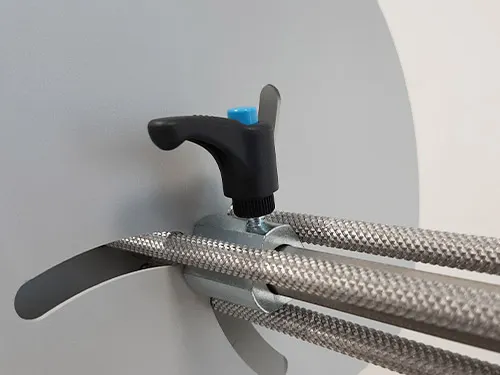

40mm - 118mm (1.57" - 4.64")
adjustable core holder

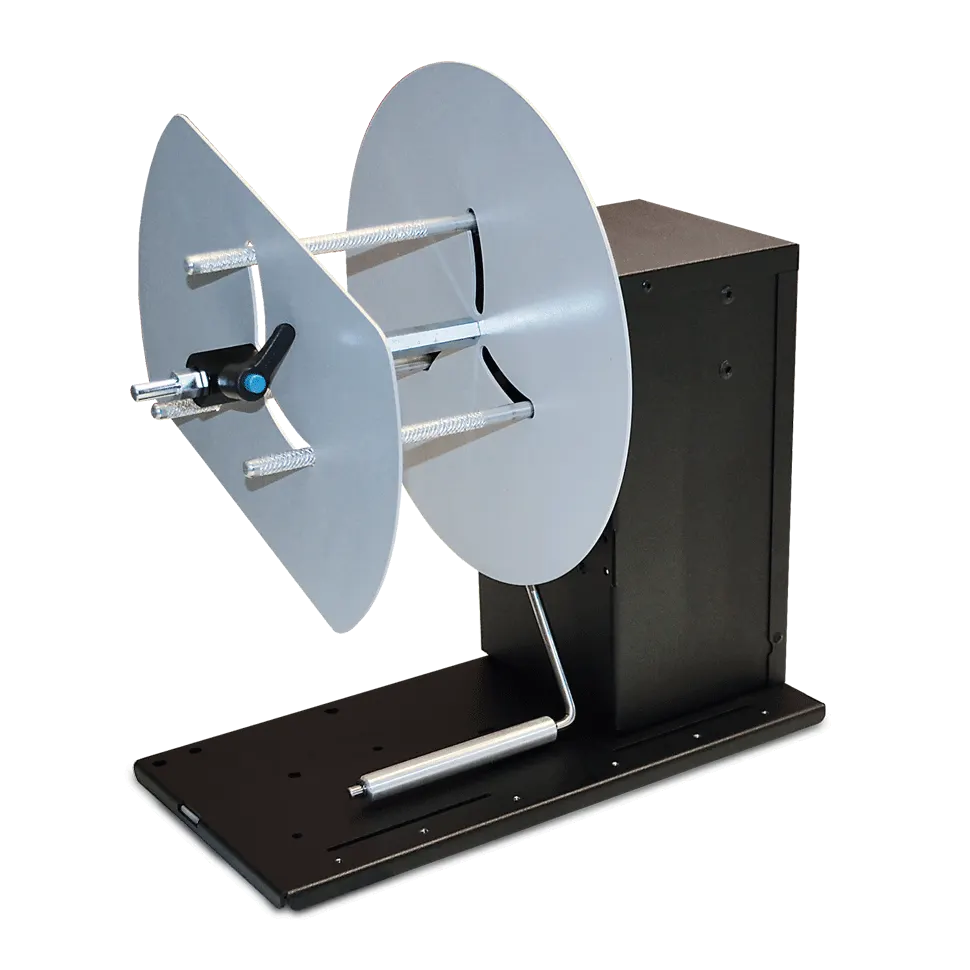

Label rewinder with
40mm - 118mm (1.57" - 4.64")
adjustable core holder

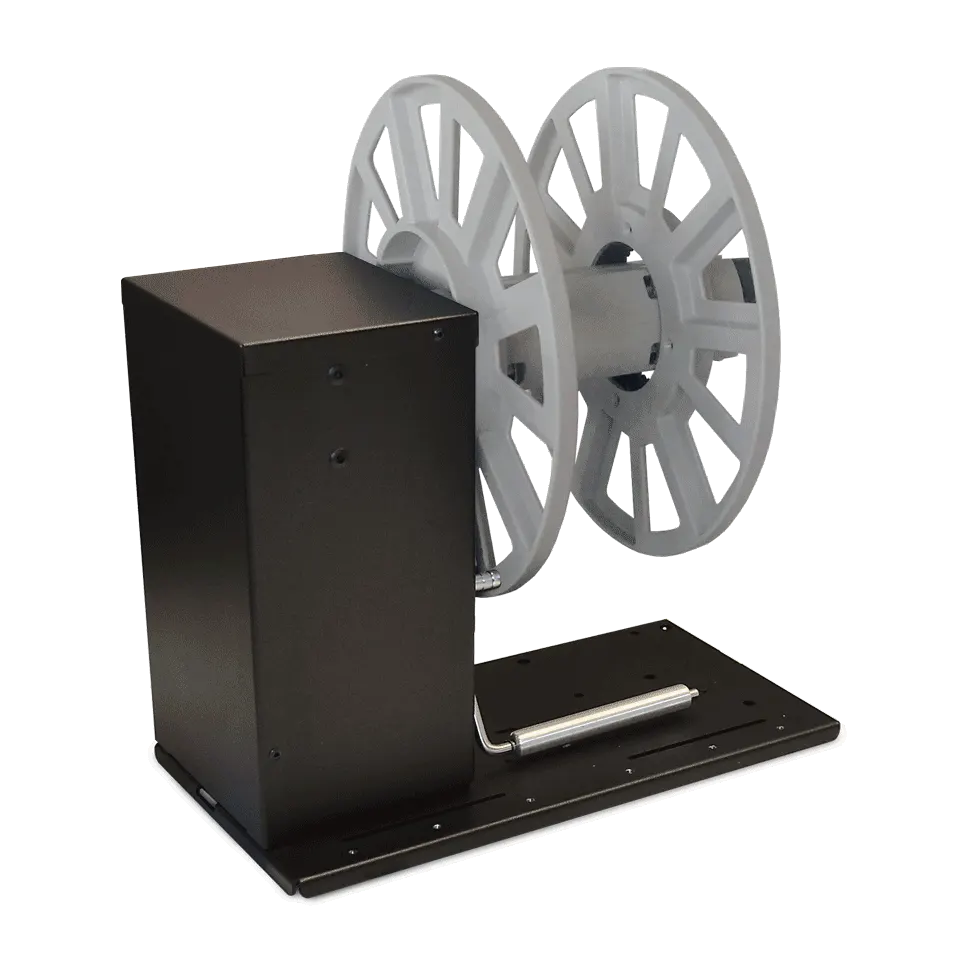

Label unwinder with

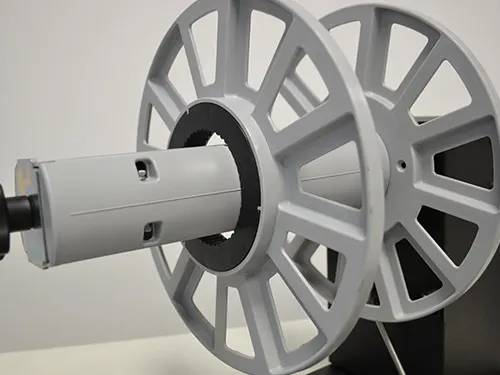

76mm (3") fixed core holder
Label rewinder with
76mm (3") fixed core holder

P R I N T E R - P L A T E

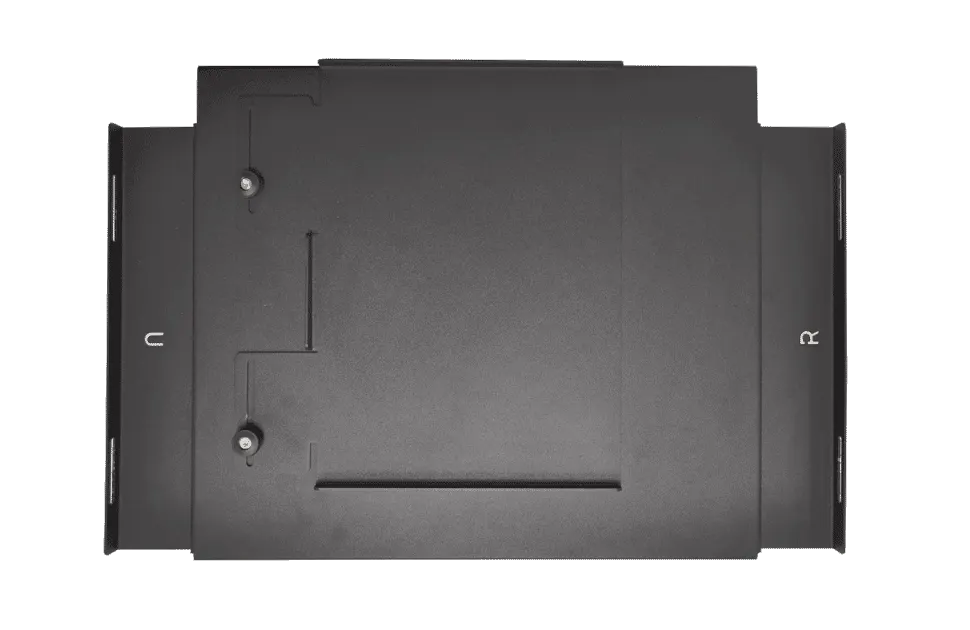

EPS40-JPL
EPS40-JPL
UW&RW printer plate for Epson C4000

CORE HOLDER
40-118mm CORE HOLDER 3" FIXED CORE HOLDER
adjustable core holder fixed core holder


SIZE
MODELS LENGTH WIDTH HEIGHT
All models
(second plate included)
43cm (19.93") 35cm (13.78") 36cm (14.17")
Printer Plate
(EPS40-JPL)
56cm (22.04") 38cm (14.96") /


GALLERY


  • label rewinder and unwinder for epson c4000 printer detail
  • label rewinder and unwinder for epson c4000 printer detail
  • label rewinder and unwinder for epson c4000 printer detail
  • label rewinder and unwinder for epson c4000 printer detail
  • label rewinder and unwinder for epson c4000 printer detail
  • label rewinder and unwinder for epson c4000 printer detail
