Label Unwinder

FEATURES

Do you own a thermal or inkjet label printer branded Epson, Zebra, Intermec or Sato…?
Thanks to a collaboration with the major label printer manufacturers, D.P.R. has designed label unwinders suitable with any model of thermal transfer printer and specific roll to roll systems for the inkjet color label printers available on the market.

All products are specifically designed to work inline with various label printer with a goal of greatly improving your label production.

In order to guarantee a perfectly aligned media path, we've added specific base plates which can easily accommodate the a wide range of label printers giving you the benefit of having your own in-house printing solution.

Create your print station and boost your workflow.

Top features:
- Freedom to build the configuration that better fits your needs.
- Specific base plates which easily be attached to label printers.
- High Capacity Roll to Roll.

Our range of label unwinders can handle labels up to 127mm (5"), 174mm (6.85") and 244mm (9.60") wide and rewind rolls with diameter up to 250mm (10") and 300mm (11.81"). Users can choose among 3 different types of core holders: the adjustable core holder from 40mm (1.57") up to 118mm (4.64"), from 25mm (1") up to 76mm (3") and 76mm (3") fixed core holders.

It is possible to add an optional support for heavy rolls (if the unit is equipped with support, the core holder is adjustable 46mm-118mm (1.81"-4.64")). Label unwinders are equipped with an external auto-switching 100/240V power supply and an electronic circuit controls the functions.

Our label unwinder series is available in different versions and every model is marked by its own code. Through the configuration table below, it is possible to select the version better fitting your needs and to obtain the code of the product to order.

Configuration example: SS 1 1 1 1 - S1

CORE HOLDER

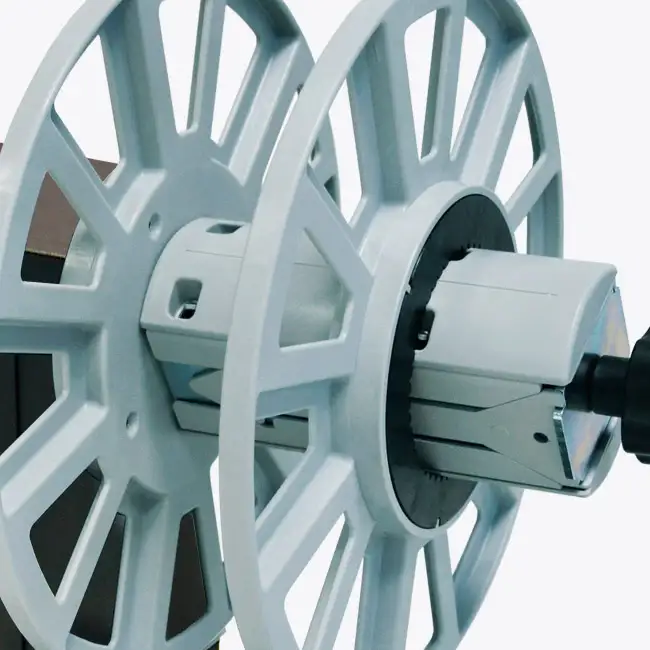

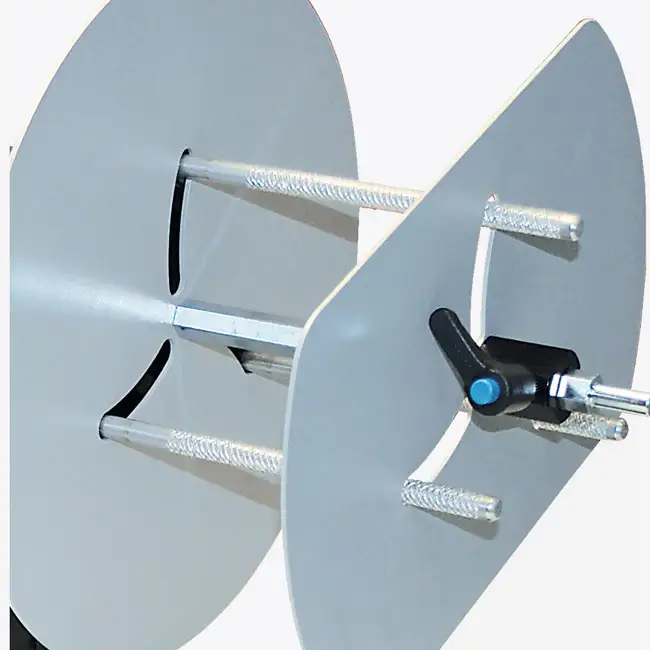

40-118mm CORE HOLDER	3" FIXED CORE HOLDER

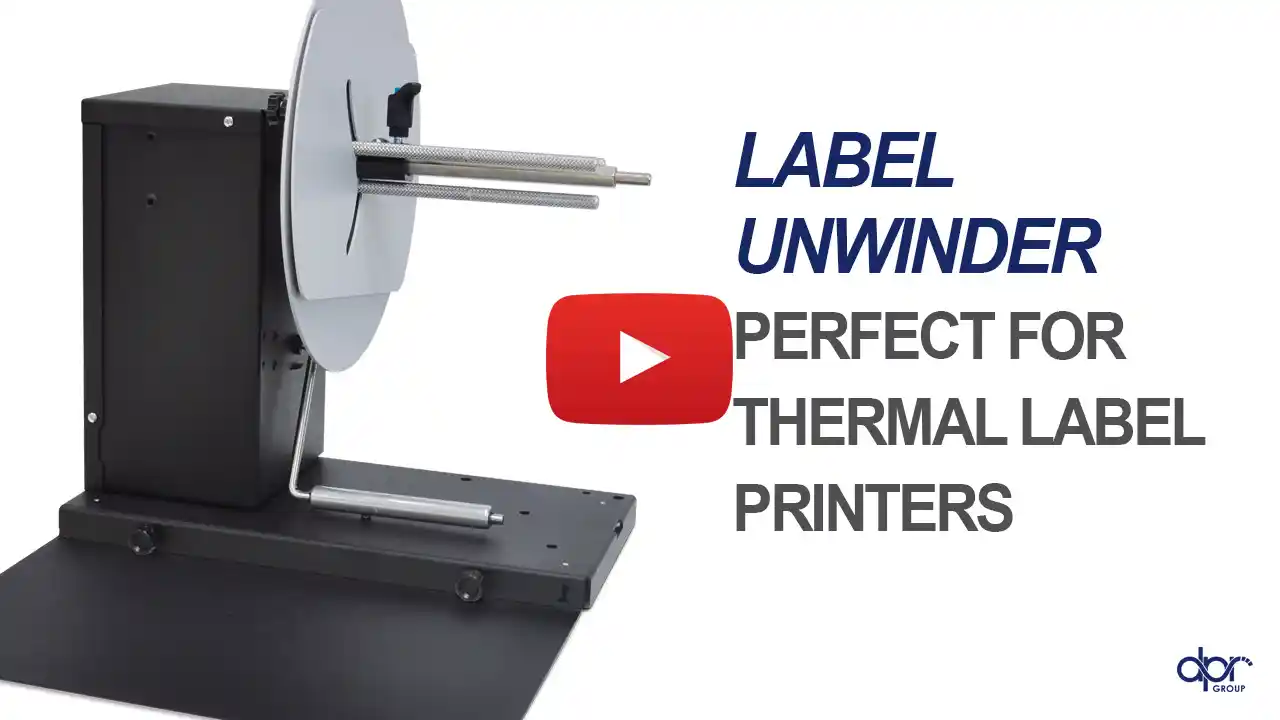

VIDEO
