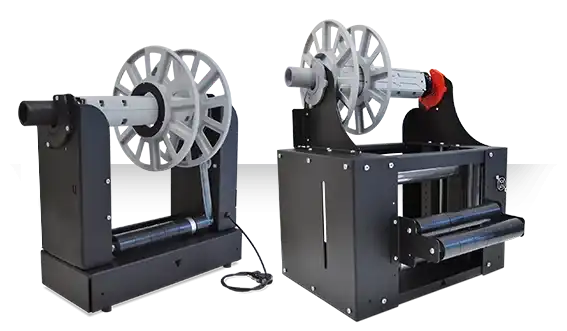

Motorized Core Holder XL

  • motorized core holder XL
  • Roll diameter:

    Up to 250mm (9.84")

    Media width:

    Up to 240mm (9.45")

    Core Holder:

    3" fixed


FEATURES


Our MCH XL Rewinders & Unwinders are the perfect companions to most digital inkjet label printers.
Thanks to its revolutionary design and solidly manufactured quality, the MCH XLs are perfect for high usage and heavy duty jobs.

Roll diameter and weight will never be a problem again!

The MCH XLs can handle labels up to 240mm (9.45") wide, and rewind or unwind rolls with OD up to 250mm (10"). Rolls are rewinded/unwinded onto/from a 76mm (3") core holder.

Thanks to the clutch system in place, it is possible to obtain different levels of roll tightness.


Brochure | User Manual Rewinder XL | User Manual Unwinder XL |


M O D E L S
MCH51URXL MCH100RUXL

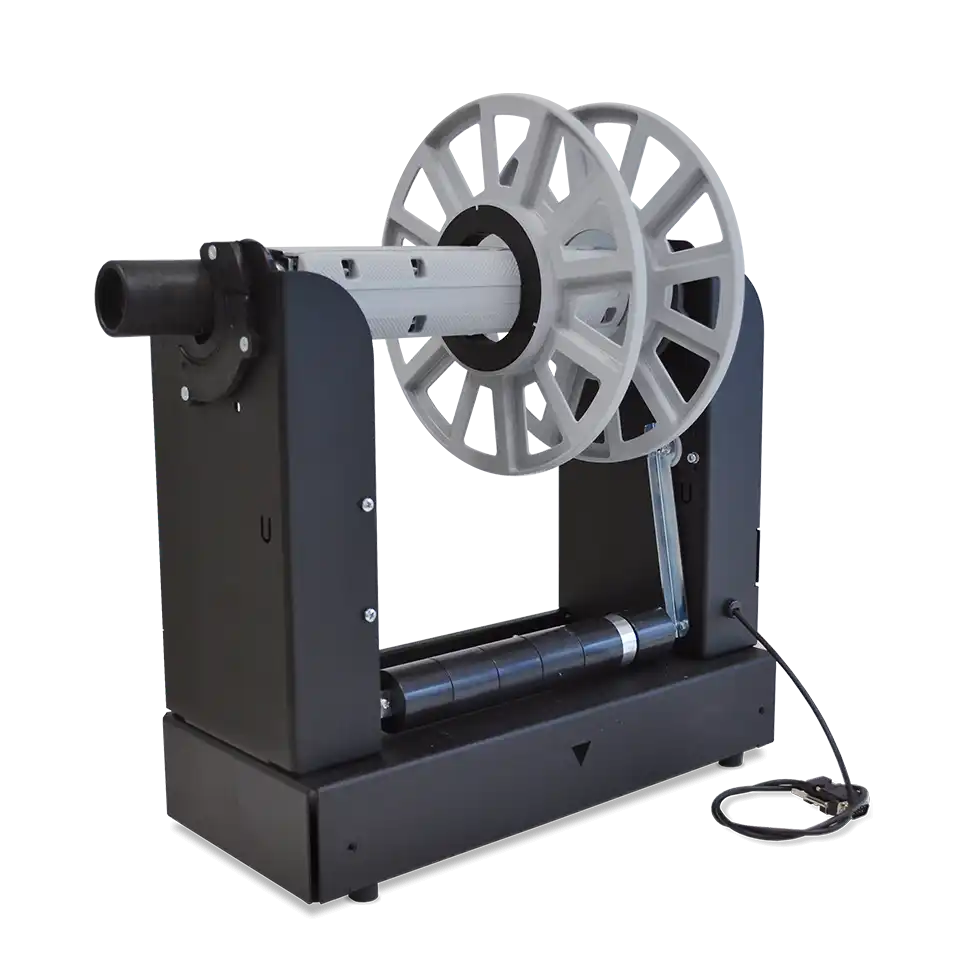

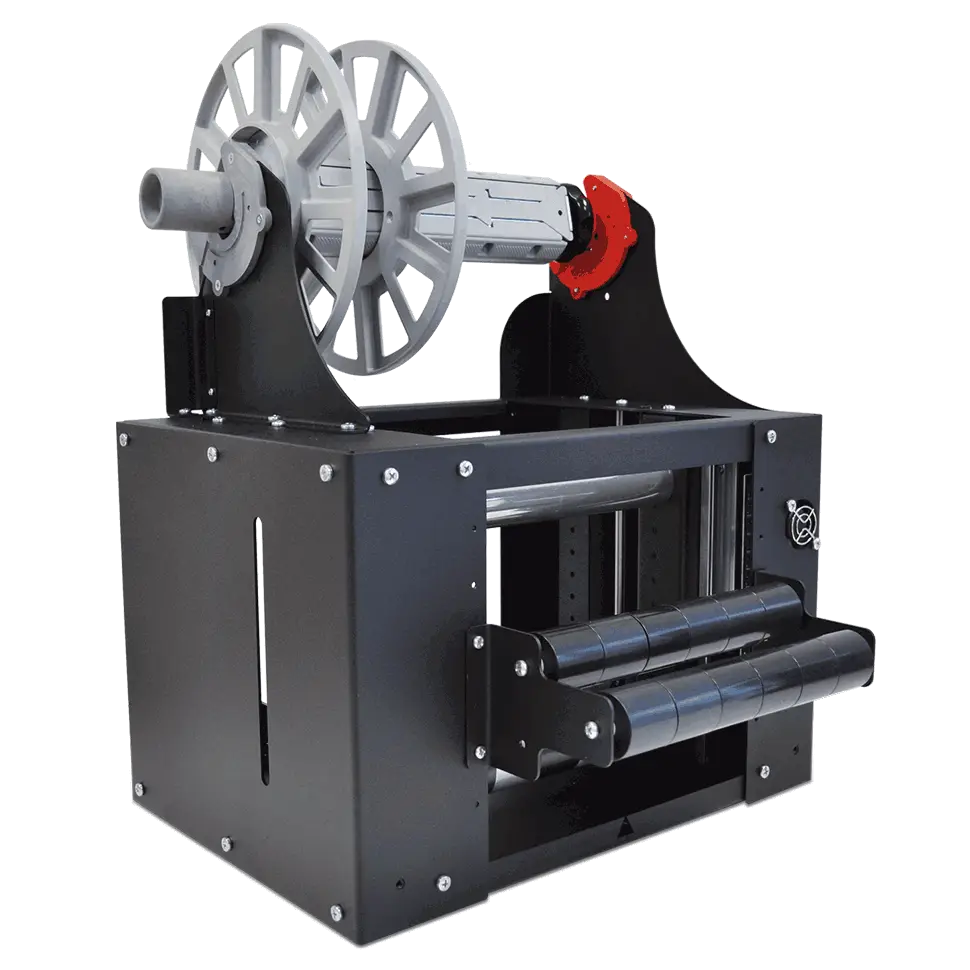

MCH51URXL - motorized core holder XL MCH100RUXL - motorized core holder XL
Label Unwinder

Maximum OD Roll 250mm (10")
Maximum Media Width 240mm (9.45")
Speed 51rpm
Label Rewinder

Maximum OD Roll 250mm (10")
Maximum Media Width 240mm (9.45")
Speed 100rpm


SIZE
MODELS LENGTH WIDTH HEIGHT
Label Unwinder 50cm (19.68") 49cm (19.29") 48cm (18.89")
Label Rewinder 82cm (32.28") 49cm (19.29") 58cm (22.83")

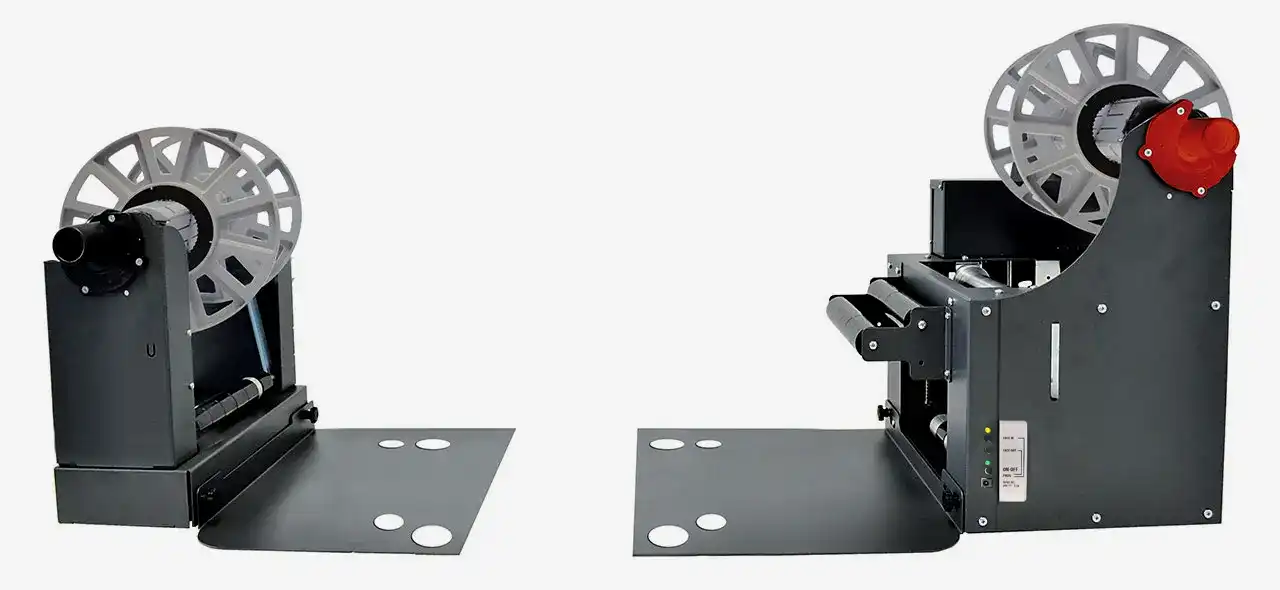

Roll to Roll System XL
(Unwinder + Printer Plate + Rewinder)


The MCH XL s can be configured as standalone rewinder or unwinder, or as a complete roll to roll system (unwinder + printer plate + rewinder) for use with most digital inkjet label printers available on the market.
MCH51R2RXL



PRINTER PLATE SIZE
MODELS LENGTH WIDTH HEIGHT
Label Unwinder 29cm (11.41") 49cm (19.29") 3cm (1.18")
Label Rewinder 34cm (13.38") 49cm (19.29") 3cm (1.18")


VIDEO




GALLERY

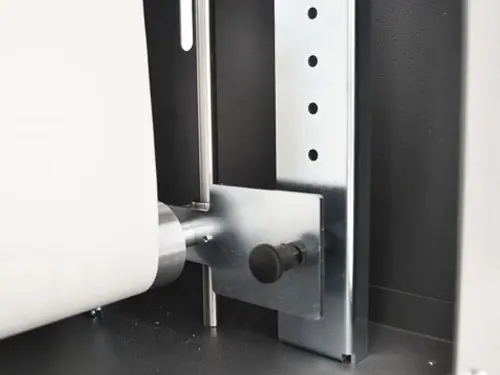

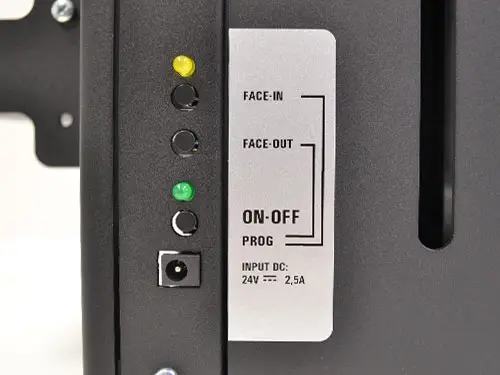

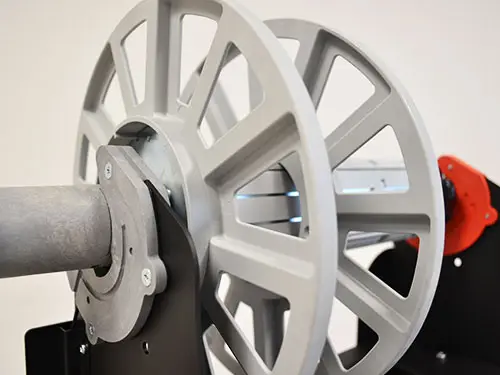

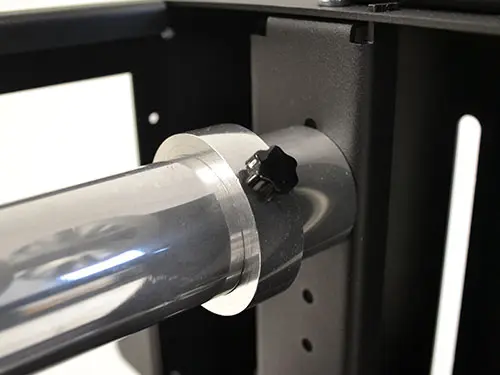

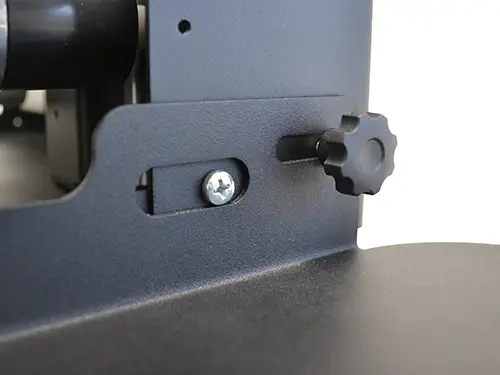

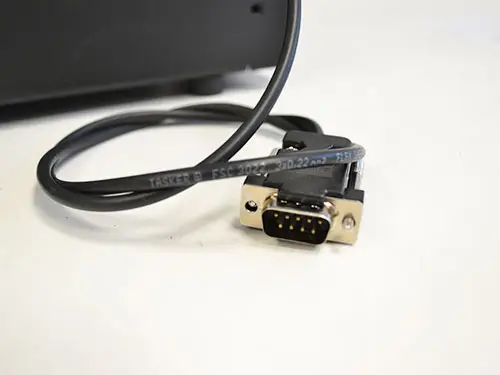

  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
  • DPR motorized core holder MCH XL detail
