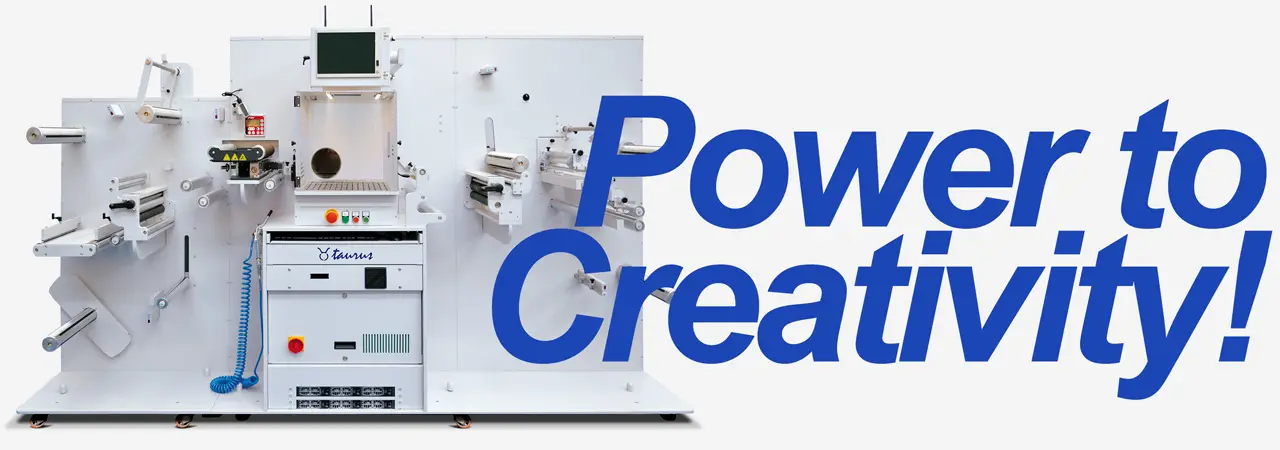

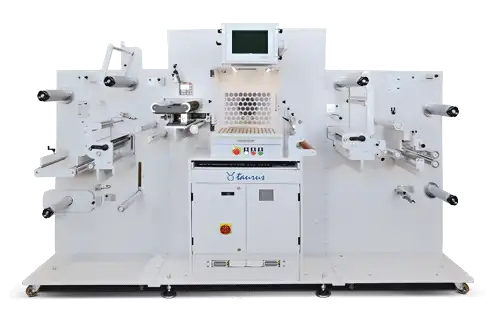

TAURUS - The smartest laser label finishing system

TAURUS - Innovative laser label finisher


Maximizing efficiency like never before.


The Taurus laser finishing system enables ultra-fast turnaround with minimal setup for both new and repeat jobs, ensuring uninterrupted production and improved efficiency.

By eliminating the need for conventional die-cut plates, it reduces costs and setup time while increasing flexibility.

The Taurus executes multiple finishing processes kiss-cutting, perforating, and full cutting across a wide variety of label materials, achieving speeds of up to 100m/min, depending on the model configuration, cut pattern, and substrate to be cut.

Depending on the chosen configuration it includes laser die-cutting, varnish, slitting, and dual rewinding.
With precise register and cut-depth control, it delivers exceptional edge quality and design flexibility, making same-day label delivery and short-run and high-volume production easier, faster, and more cost-effective.

Top Features


✓ Perfect for short-run, medium to high-volume production
✓ Offers kiss-cut, full cut, perforation, and engraving options
✓ Supports both printed and unprinted media
✓ Includes job profile library
✓ QR code reader for automatic job loading
✓ Unlimited label length

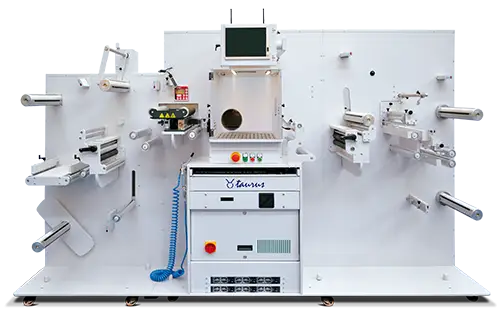

Brochure | Cutting speed comparison | User Manual TRS35PL |


Why Choose TAURUS?


- Compact Design: Small footprint for easy integration into any workspace.
- Quick Setup: Fast installation and straightforward customization to fit your needs.
- Digital Workflow: Seamlessly integrates with digital workflows for "just-in-time" delivery.
- User-Friendly: No need for highly skilled operators; our systems are intuitive and easy to use.
- Versatile and Fast: Perfect for short-run, medium to high-volume production
- Precision Cutting: Achieve any label shape with top-notch laser cutting quality.
- Efficient: QR code reading for job changes on-the-fly, maximizing productivity.


Benefits:


Advanced Technology for Modern Needs
TAURUS systems support web widths up to 350mm and come in three configurations to meet diverse production requirements. Whether you need standard or custom labels, TAURUS delivers precision and speed, handling materials from paper to plastic films.

Total Digital Workflow
Transition from traditional die-cutting to a fully digital workflow with TAURUS. From PDF to shipping, eliminate tooling and storage costs. The proprietary software integrates with common digital workflows.

Exceptional Service and Support
Our global presence ensures outstanding support during and after purchase. We offer remote assistance and real-time troubleshooting to keep your operations running smoothly.

Environmentally Friendly
TAURUS laser finishers are eco-friendly, reducing material waste and eliminating the need for traditional dies.




Multiple configurations


The Taurus can be configured to perfectly match specific production needs.

It is available with a single head delivering up to 225W or 350W, or with a dual head (available only with 350W main laser configuration) providing up to 700W to enhance working speed and overall performance.

Being a modular system, it also allows the installation of varnish modules and a corona treater as retrofit options.



TECHNICAL SPECIFICATIONS
Cutting Area 330mm x 330mm (13” x 13”)
Web Width 50mm - 350mm (1.96” - 13.78”)
Input Roll Diameter 500mm (19.68”) or 800mm (31.49”)
Rewinding Dual-shaft rewinding up to 400mm (15.74”)
Core diameter Pneumatic (3”)
Minimum Slitting Width 19mm (0.75”)
Laser Source 225W or 350W CO2 sealed laser source (10.25 μm)
Media Type Allowed Paper, Plastic Films
Accessories Included Fume blower, Water chiller, External trims blower, QR Reader and mark sensor
Lamination Cold lamination (self-wound or with liner)
Warranty 12-months


TAURUS - CONFIGURATION TABLE (Sample code: TRS211012)
MODEL LASER SOURCE POWER SECOND HEAD HIGH CAPACITY UNWINDER FLOOD VARNISH SPOT VARNISH WITH COLD FOIL CORONA TREATER
TRS 1
225W laser source
speed up to 30m/min
0
None
(retrofit not possible)
0
Standard diameter up to
500mm (19.68")
0
None
(retrofit possible)
0
None
(retrofit possible)
0
None
(retrofit possible)
2
350W laser source
speed up to 70m/min
1
Dual 350W laser source
speed up to 100m/min
1
High capacity
up to 800mm (31.49")
(retrofit not possible)
1
Full rotary flood varnish module
with flexographic station
and UV lamp
1
Full rotary spot varnish module
with flexographic station
and UV lamp, includes cold foil capability
1
Vetaphone – 2Kw
2
Vetaphone – 4Kw


Brochure


Taurus with the world's most trusted label printers

Join us as we take you on a tour of some worldwide installations featuring our special unit TAURUS. Witness its effortless compatibility with the most important and affidable label printers (KONICA MONOLTA, EPSON, HP, SCREEN, AFINIA, ...)


Look here



  • Taurus - laser speed
  • Up to 100m/min depending on model, cut pattern and material being used this finisher offers unwinding, laminating, digital cutting, waste removing, rewinding and length slitting in a single pass.


    Type of cut: Kiss-cut, Full cut, Perforation, Engraving

    Media type allowed: Paper, Plastic Films except PET

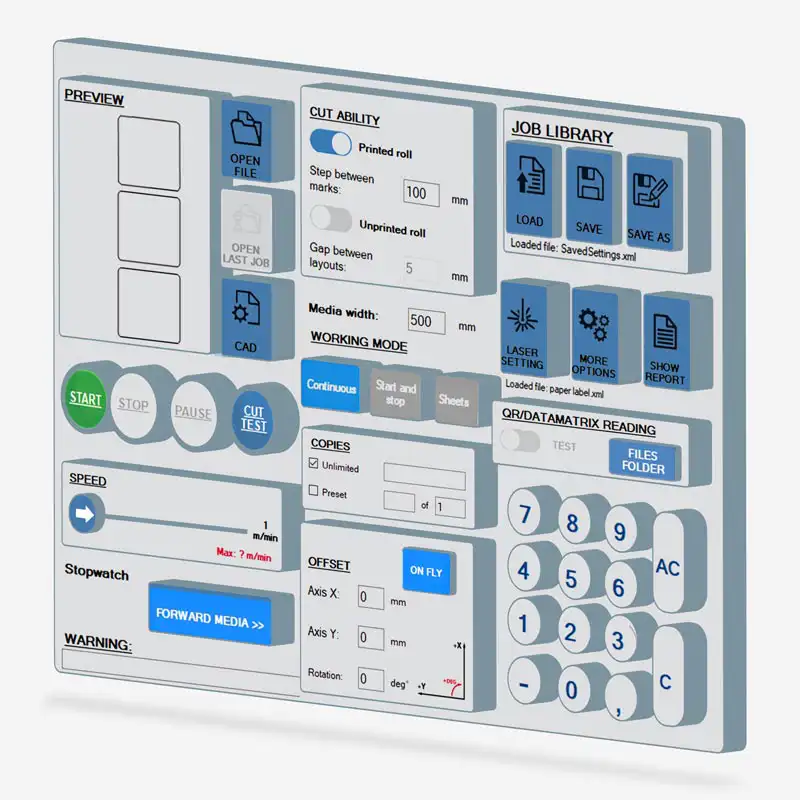

  • software Taurus
  • Cutting manager software


    An innovative and smart cutting management software allows the operator to easily adjust the work speed and laser output for fabulous cutting, time optimization and less materials waste which in turn = greater profits.

    The User friendly management software for Windows is compatible with Adobe PDF files.


    Let's find out together

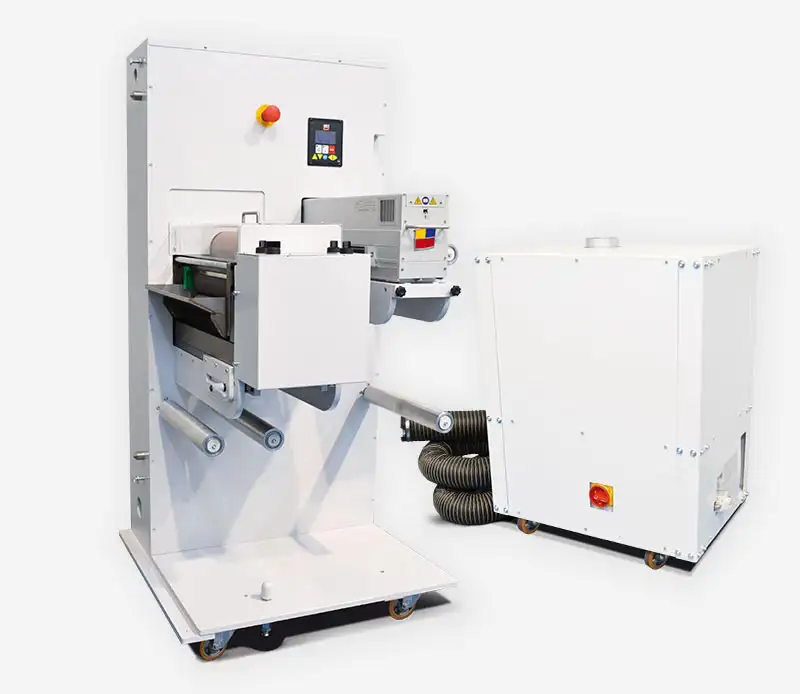

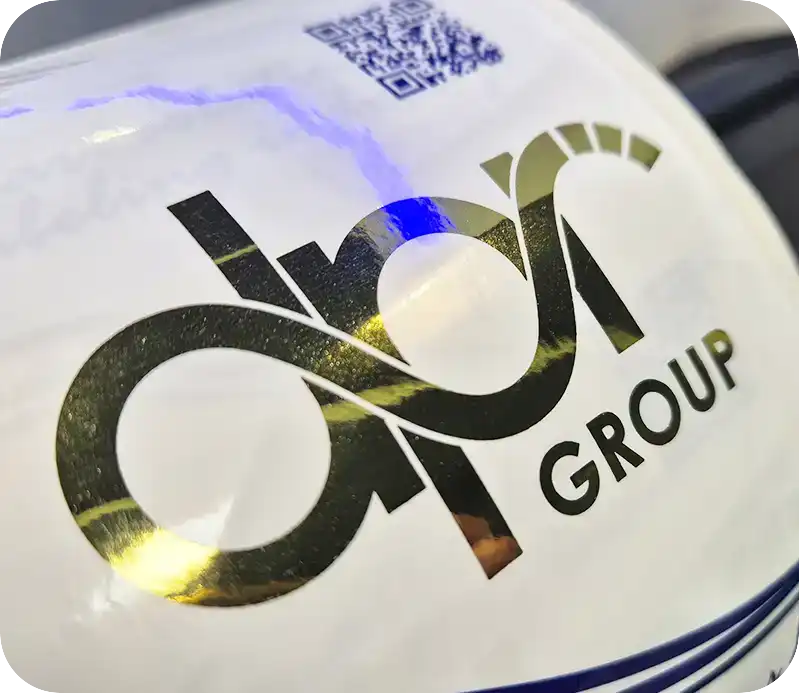

  • UV Varnish application
  • Flood or Spot varnish with cold foil


    With the superior finishing achieved by this module, which can also be retrofitted, you can add prestige and extra value to your printed labels.

    This versatile unit supports both flood or spot varnish applications, with the option to apply cold foil.
    Alternatively, the flexographic unit can serve as a single-color printing station in-line with the Taurus.

    An optional slot is also available for installing a Corona treatment device.


    Learn more




SIZE
MODEL LENGTH WIDTH HEIGHT WEIGHT
TRS100000 290cm (115") 100cm (39.37") 180cm (71") 770kg (1697lb)
TRS211000 353cm (138.98") 100cm (39.37") 180cm (71") 850kg (1874lb)

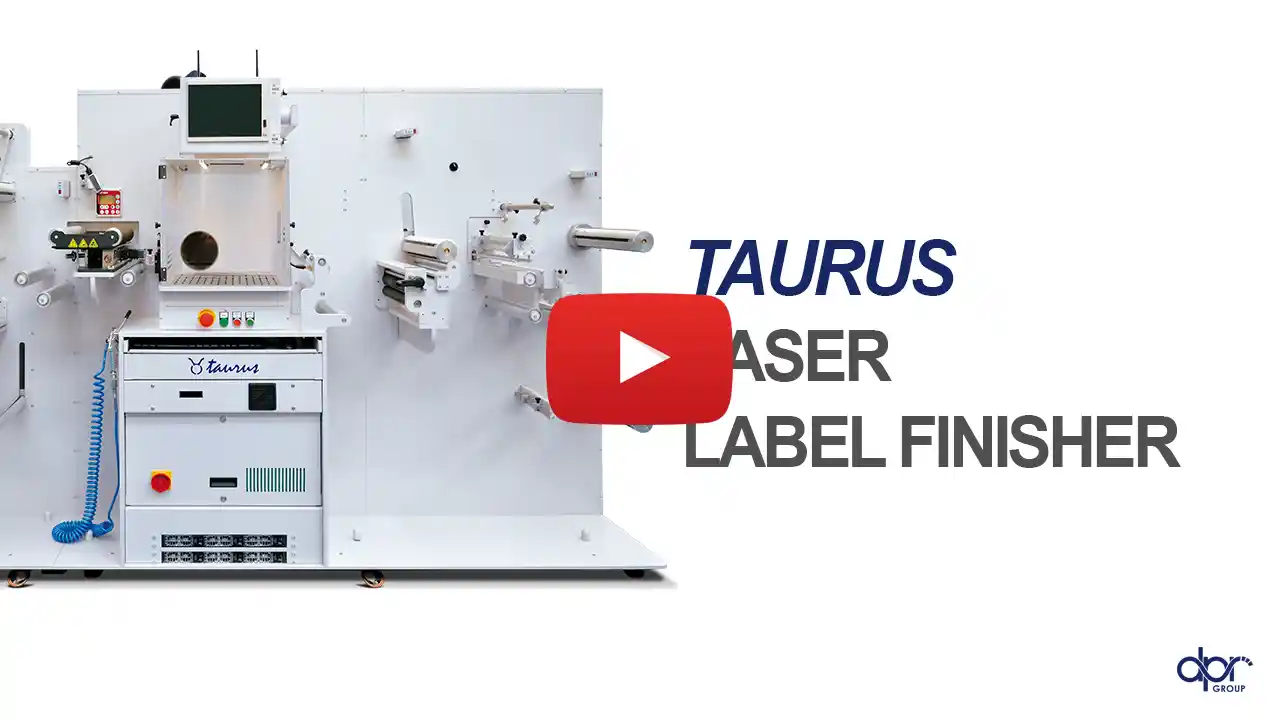

VIDEO


video preview


video preview


GALLERY

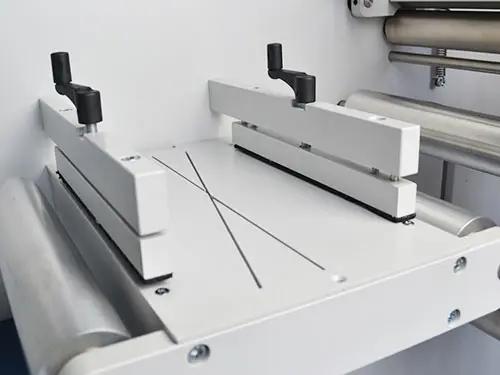

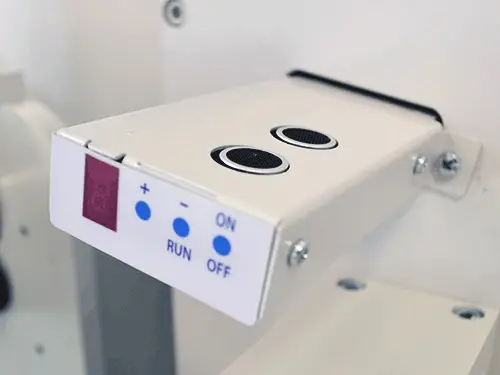

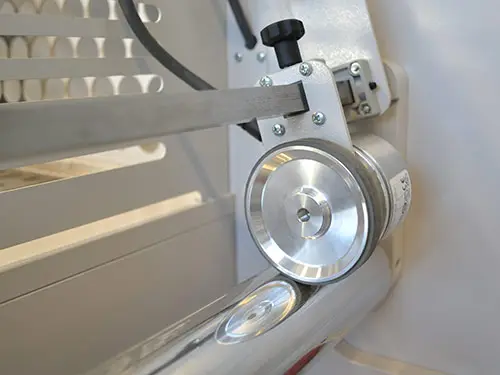

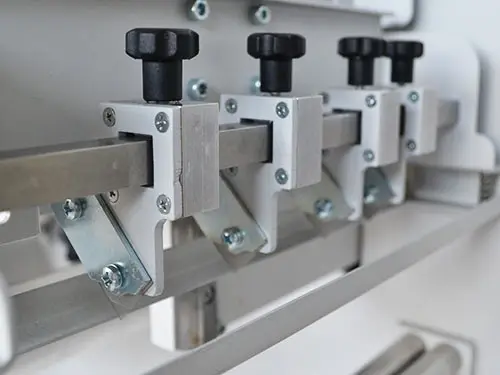

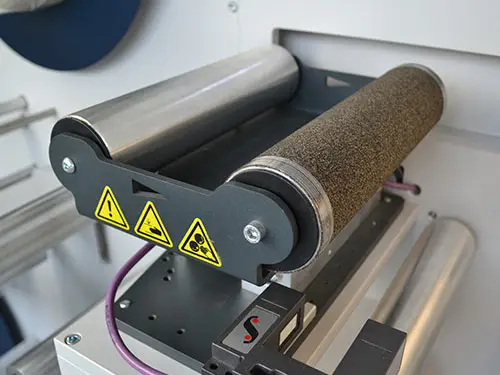

  • label finisher system detail
  • label finisher system detail
  • label finisher system detail
  • label finisher system detail
  • label finisher system detail
  • label finisher system detail
