We doubled the speed of our blade finisher.
Virgo reaches the maximum speed of 3m/min.
Would you like to double it? From today you can.

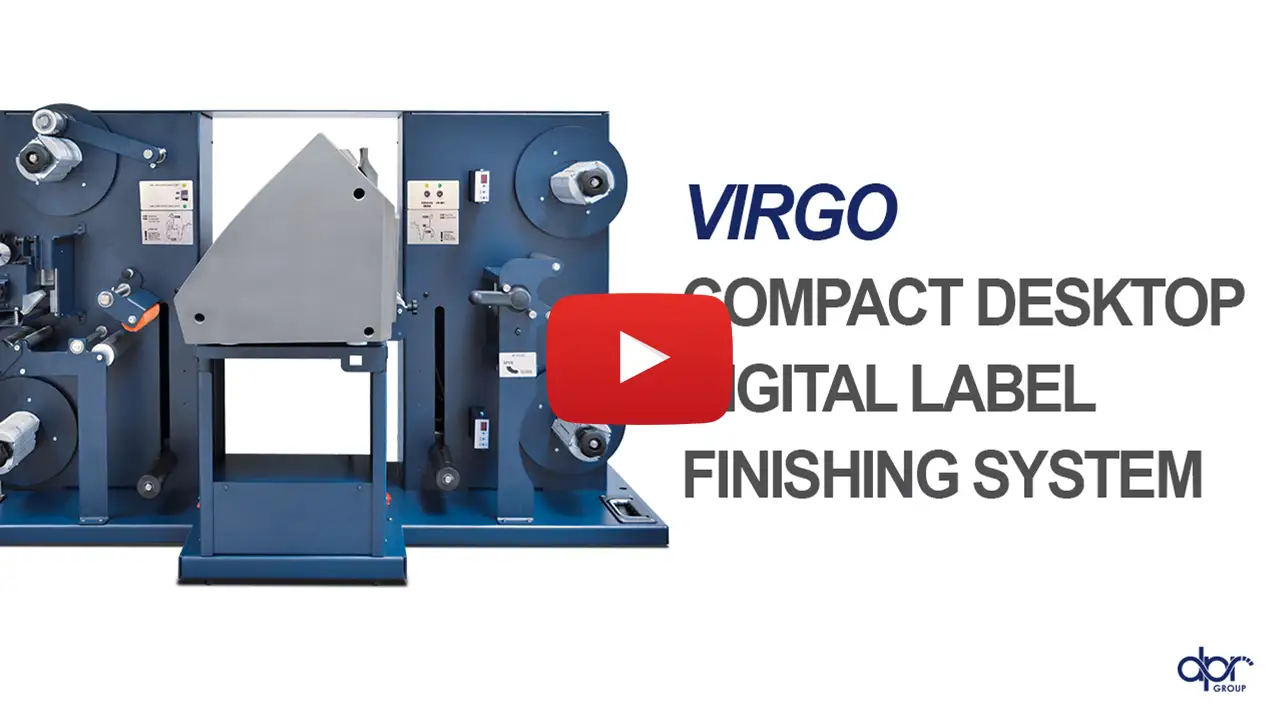

Virgo is a compact destop finishing system that unwinds, laminates labels for durability, digitally die cuts, removes excess label material around each die-cut shape, slit, and rewinds offering you everything to professionally cut and finish labels.
The system provides a very accurate label finishing solution using cutting plotter technology with reduced dimensions.This allows you to cut different types of materials and shapes on the fly without the added cost of dies.
The unit is also equipped with a cutter management tool that works in tandem with a camera forming an integrated optical black-mark registration system providing cutting speed optimization and avoiding synchronization issues.
The Virgo's core features offer the user full flexibility, limitless variations in label design with a smooth workflow.
The Virgo digital label finisher is truly the perfect on-demand short run label finishing solution for those using a digital color label printers and presses.
Waste pressing Roll
Thanks to the pressing roller positioned above the waste core holder facilitates the matrix removal from the die-cut roll, reducing the risk of tearing and ensuring more precise operation of the machine.
Easy to move
Virgo series are equipped with two handles, one on each side, that allows you to easily move the machine.
This added benefit makes the Virgo a complete machine for all of your business needs.
The new accessory designed to rewind the lamination’s liner will allow the use of the most modern and silent lamination rolls.
Developed as an optional, it is possible to be purchased separately and installed subsequently when it is required thanks to the predisposition on Virgo units.
Virgo software works together with a camera forming an integrated optical black-mark registration system.
With this software, the operator can import the cutting files created on Adobe Illustrator, Inkscape or Corel Draw which is also used to create the black marker.
The camera equipped on Virgo assist the software in detecting the black-mark created inside the cutting file. This process tells the plotter when and where to start cutting the media.
LET'S FIND OUT TOGETHER
Bring your label production in-house with print solutions from Epson & DPR. To receive more information on how you can get your own custom label solution or to find a dealer in your area, contact us. >> more
D.P.R. offers a range of all-in-one systems that provide everything you need to professionally cut and finish labels of any shape and size - without the added cost of dies. with D.P.R. label finishing systems, users can laminate for added durability, digitally die-cut, remove the excess label material around each label, slit, and rewind the roll, making it ready for final application. >> more
|Optical Sensing||With the help of the camera, the Virgo uses an integrated optical black-mark registration system allowing it to read one black-mark for each cutting layout, optimizing cutting speed with no synchronization issues.|
|Adjustable Clutch||This feature allows for a flat tight finished roll and waste material.|
|Size Does Matter||Virgo compact size help operators have more room to easily and quickly load the media and get the machine ready to work in a few minutes.|
|Media Track||Virgo is equipped with an ultrasonic sensor system that generates a loop of media both in plotter input and output in order to guarantee a smooth media track during the cutting operations.|
|Slitter Blades||Virgo is equipped with inexpensive multi edge blades helping to extend the life of the blade.|
|Blank Labels||Cutting blank labels on the Virgo is hassle free. With the help of the Scorpio software, operators will only need to set label step, meaning there's no need to load media with a pre-printed black-marker.|
|Software||Virgo proprietary software can be installed on any computer running Windows 8.1 or later. Not supported by macOS systems.|
|Remote Assistance||Customers whose computers are connected to internet can be reached by one of our operators for remote assistance and firmware upgrades.|
|All trademarks and copyrights are the property of their respective owners.|
|Input / Output Roll Diameter||200mm (7.87”)||200mm (7.87”)|
|Minimum Web Width||108mm (4.25”)||108mm (4.25”)|
|Maximum Web Width||140mm (5.51”)||225mm (8.86”)|
|Maximum Cutting Width||122mm (4.80”)||200mm (7.87”)|
|Minimum Slitting Width||19mm (0.75”)|
|Minimum Label Length||10mm (0.39”)|
|Maximum Label Length||350mm (13.77”) with limitations|
|Number of Slitting Blades||up to 8||up to 12|
|Maximum Media Thickness||0.25mm (10 mil)|
|Maximum Cutting Speed||600mm/s (24 in/s) in all directions|
|Roll Core Size||76mm (3”)|
|Agency Certifications||CE, FCC, RoHS|
|Warranty||One Year Parts and Labor. Usage Limitation may apply|
